Back to Core modulesWired in CoreModule

Core Submodule

dashboard

Manages dashboard definitions, items, templates, sharing and role binding.

Source path: libraries/core/src/dashboard

Module file: dashboard.module.ts

Introduction

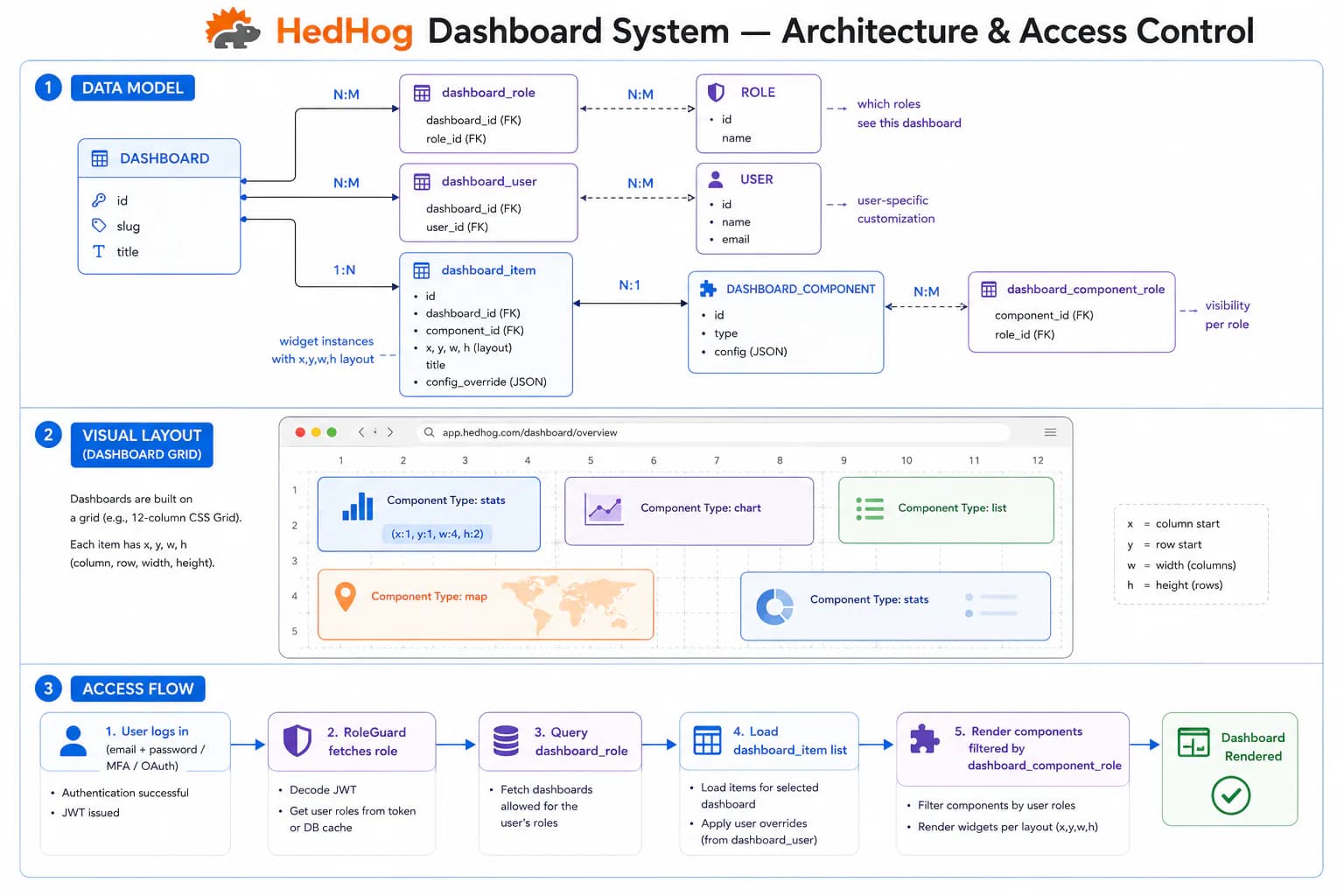

The Dashboard submodule powers a flexible, multi-user dashboard engine where each dashboard is composed of independently positioned and resized widget components arranged in a configurable grid. Dashboards are named containers identified by a slug; widget components are registered UI component definitions that declare default, minimum, and maximum grid sizes along with an optional library scope and preview screenshot.

Widget instances link a component to a dashboard with an explicit position (x_axis, y_axis) and size (width, height), allowing the same component type to appear in multiple dashboards at different sizes and positions. Layout changes made by a user through drag-and-drop are persisted via POST /dashboard-core/layout/:slug, which takes the full set of positioned items and overwrites the previous arrangement — the server is always the source of truth for the grid state.

Each user can maintain personal dashboards and designate one as their home dashboard. Dashboards can be shared with specific named users, giving collaborators view access without granting admin access to the underlying configuration. Shared access can be revoked per-user at any time. Dashboard templates provide pre-configured starting layouts that users can clone when creating a new dashboard, reducing the barrier for onboarding.

Both dashboards and individual widget components support role bindings. When a role is assigned to a dashboard or component, only users holding that role can see it. This enables tenant-specific or feature-flagged dashboard surfaces within the same deployment without maintaining separate installations.

The overview dashboard is fed by three dedicated statistics endpoints: user stats (active accounts, recent signups), mail stats (sent volume, error rates, read rates), and system stats (uptime, memory usage, Node.js version). Each stats endpoint is separately role-gated, so operators can expose only the metrics relevant to each role.

HTTP Endpoints

53 endpoints

List all dashboard definitions with pagination.

Query: page, pageSize, search

Get a dashboard definition by ID.

Params: id (int)

Create a new dashboard definition.

Body

Field	Type	Required	Notes
slug	string	yes	—
locale	Record<string, { name: string }>	yes	e.g. {"en": {"name": "..."}}

Update an existing dashboard definition.

Params: id (int)

Body

Field	Type	Required	Notes
slug	string	no	—
locale	Record<string, { name: string }>	no	—

Delete a dashboard definition.

Params: id (int)

Get the home dashboard for the current user.

List all dashboards accessible to the current user.

List available dashboard templates for creating new dashboards.

Check whether the current user has access to a dashboard by slug.

Params: slug (string)

Return user-related statistics for the overview dashboard.

Return mail-related statistics for the overview dashboard.

Return system-level statistics for the overview dashboard.

Return configuration data used by the overview dashboard.

Return widget data belonging to the current user.

Get the saved layout for the current user on a specific dashboard.

Params: slug (string)

List users that can receive a share of the specified dashboard.

Params: slug (string)
Query: search, page, pageSize

List all users with whom the specified dashboard is currently shared.

Params: slug (string)

Get a dashboard by its slug.

Params: slug (string)

Create a personal dashboard for the current user.

Body

Field	Type	Required	Notes
name	string	yes	—
slug	string	yes	—
icon	string	no	—
templateSlug	string	no	Slug of an existing template to clone

Save the current user's layout for a dashboard.

Params: slug (string)

Body

Field	Type	Required	Notes
dashboard_id	number	yes	—
items	{ id: number, width: number, height: number, x_axis: number, y_axis: number }[]	yes	—

Set the specified dashboard as the home dashboard for the current user.

Params: slug (string)

Field	Type	Required	Notes
userIds	number[]	yes	IDs of users to share with

Field	Type	Required	Notes
componentSlug	string	yes	Slug of the component to add

Reorder the current user's dashboards.

Body

Field	Type	Required	Notes
slugs	string[]	yes	Dashboard slugs in desired order

Update the name or icon of a personal dashboard.

Params: slug (string)

Body

Field	Type	Required	Notes
name	string	no	—
icon	string	no	—

Delete a personal dashboard.

Params: slug (string)

List all registered dashboard widget components.

Query: page, pageSize, search

List widget components accessible to the current user, optionally filtered by library.

Query: page, pageSize, librarySlug?, exclude?

Get a dashboard component by ID.

Params: id (int)

Body

Field	Type	Required	Notes
slug	string	yes	—
width	number	yes	Default widget width (grid units)
height	number	yes	Default widget height (grid units)
library_slug	string	no	—
min_width	number	no	—
max_width	number	no	—
min_height	number	no	—
max_height	number	no	—
is_resizable	boolean	no	—
locale	Record<string, { name: string, description?: string }>	yes	e.g. {"en": {"name": "..."}}

Update a dashboard widget component.

Params: id (int)

Body

Field	Type	Required	Notes
slug	string	no	—
width	number	no	—
height	number	no	—
library_slug	string	no	—
min_width	number	no	—
max_width	number	no	—
min_height	number	no	—
max_height	number	no	—
is_resizable	boolean	no	—
locale	Record<string, { name: string, description?: string }>	no	—

Upload a preview screenshot for a dashboard component.

Params: id (int)

Body

Field	Type	Required	Notes
file	File	yes	Image file, multipart/form-data

Delete a dashboard widget component.

Params: id (int)

List widget instances belonging to a dashboard.

Query: dashboardId (int), page, pageSize

Add a widget instance to a dashboard.

Body

Field	Type	Required	Notes
component_id	number	yes	—
dashboard_id	number	yes	—
width	number	yes	—
height	number	yes	—
x_axis	number	yes	—
y_axis	number	yes	—

Remove a widget instance from a dashboard.

Params: id (int)

List role assignments for a dashboard.

Query: dashboardId (int), page, pageSize

Assign a role to a dashboard.

Body

Field	Type	Required	Notes
dashboard_id	number	yes	—
role_id	number	yes	—

Assign multiple roles to a dashboard in one request.

Body

Field	Type	Required	Notes
dashboard_id	number	yes	—
role_ids	number[]	yes	ArrayNotEmpty

Remove a role assignment by record ID.

Params: id (int)

Remove a specific role from a specific dashboard.

Params: dashboardId (int), roleId (int)

List role assignments for a dashboard component.

Query: componentId (int), page, pageSize

Assign a role to a dashboard component.

Body

Field	Type	Required	Notes
component_id	number	yes	—
role_id	number	yes	—

Assign multiple roles to a component in one request.

Body

Field	Type	Required	Notes
component_id	number	yes	—
role_ids	number[]	yes	ArrayNotEmpty

Remove a component role assignment by record ID.

Params: id (int)

Remove a specific role from a specific component.

Params: componentId (int), roleId (int)

List user-dashboard associations.

Query: page, pageSize, search

Get a user-dashboard association by ID.

Params: id (int)

Create a user-dashboard association.

Body

Field	Type	Required	Notes
dashboard_id	number	yes	—
user_id	number	yes	—

Update a user-dashboard association.

Params: id (int)

Body

Field	Type	Required	Notes
dashboard_id	number	no	—
user_id	number	no	—

Delete user-dashboard associations.

Body

Field	Type	Required	Notes
ids	number[]	yes	IDs to delete

MCP Tools

Named tools callable by AI models via the Model Context Protocol (MCP).

core.dashboard.*
Full CRUD and sharing operations for dashboard definitions
core.dashboard-items.*
Full CRUD operations for dashboard widget items
